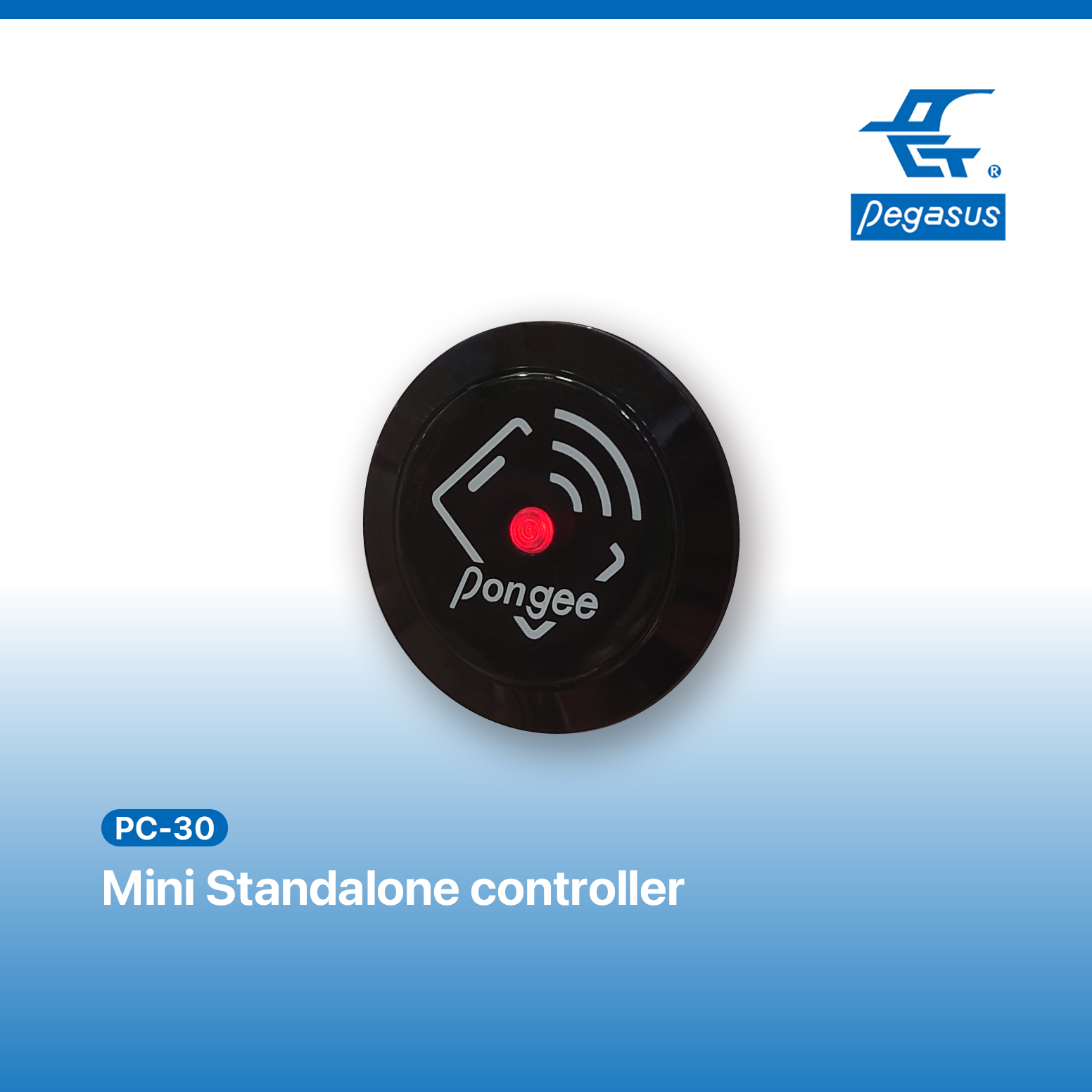

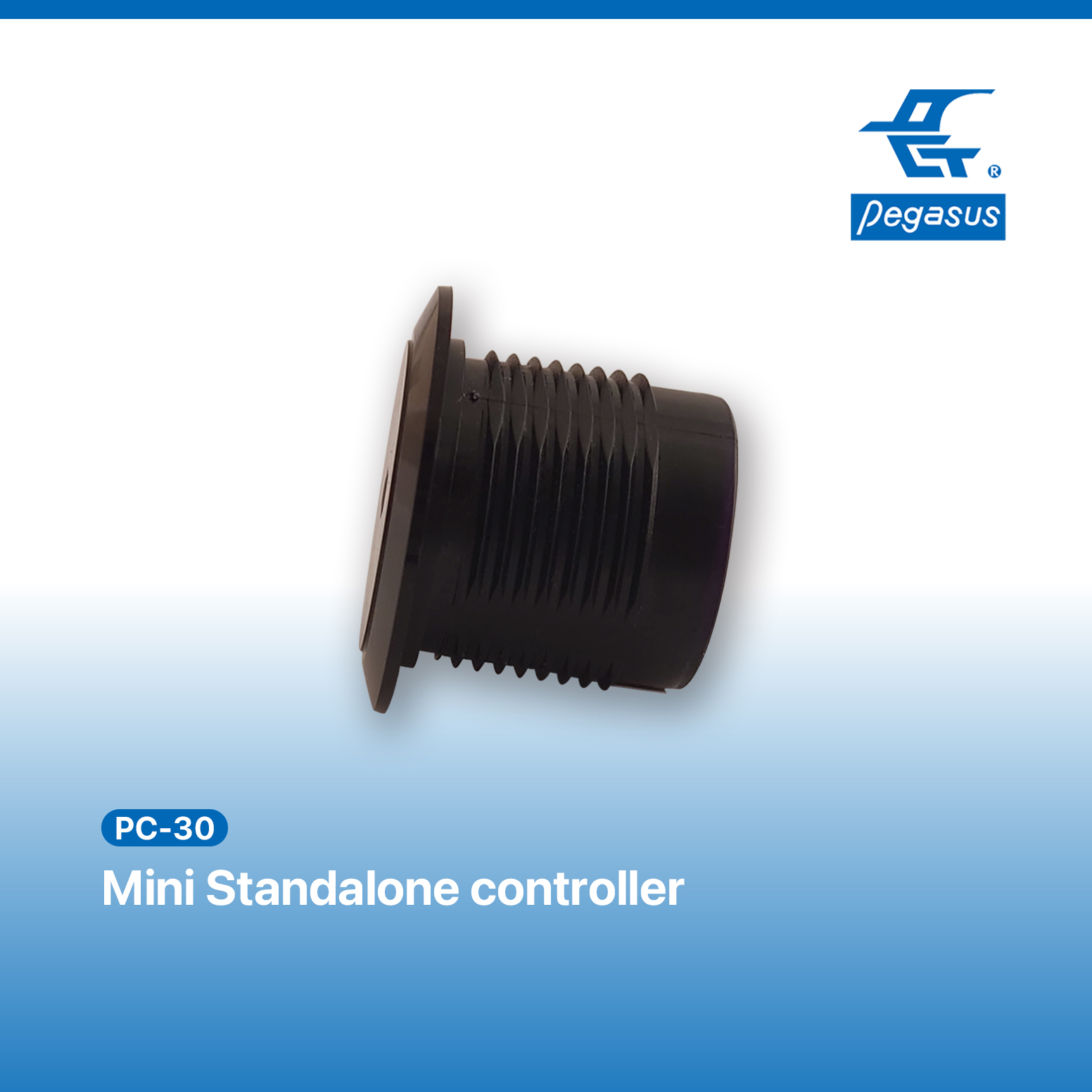

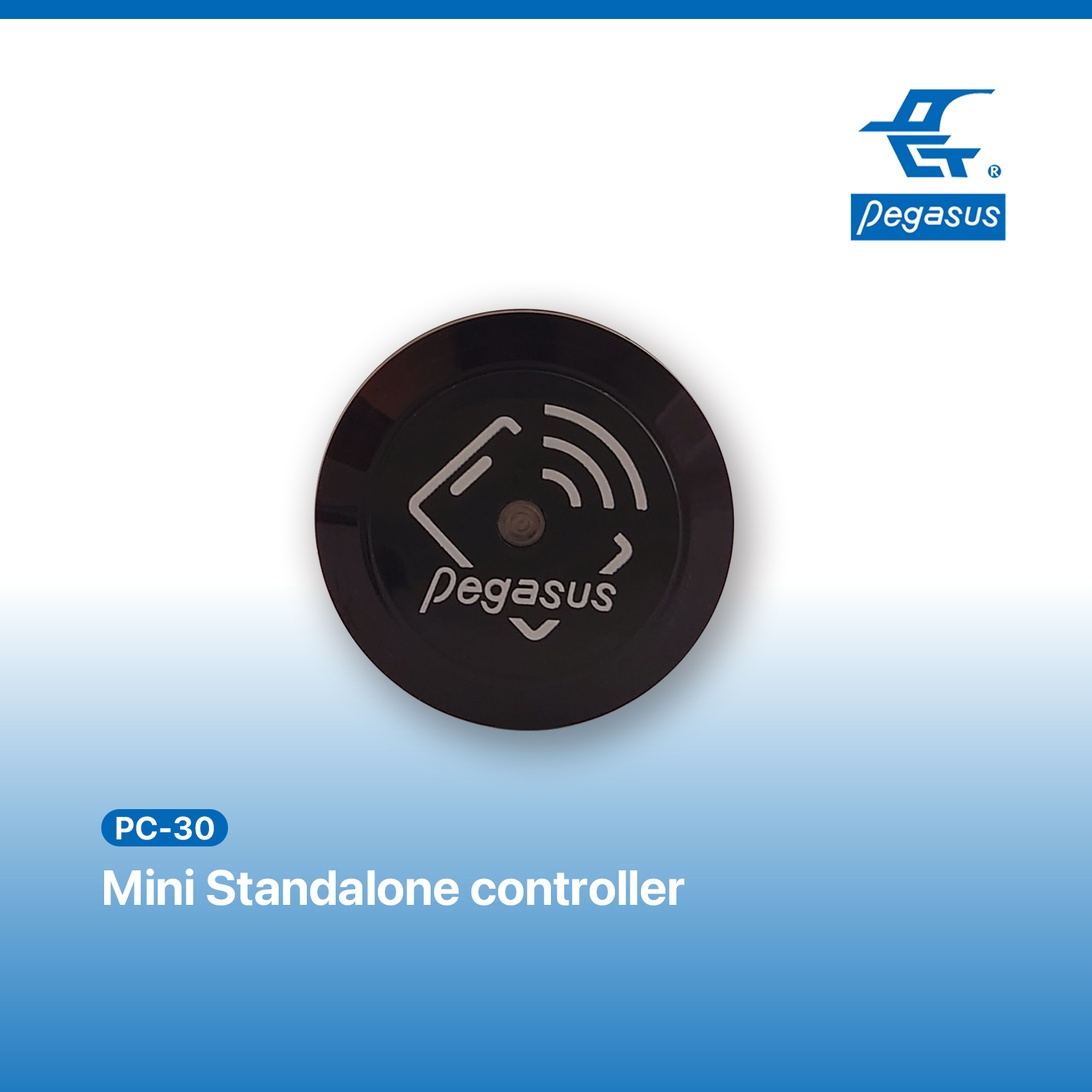

Model：PC-30
Mini Standalone controller
- Flush-Mount mini controller, Compact size, Easy to install
- Support 1000 Cards (Standalone)
- Built-in LED and Buzzer indicator
- Built-in Form A Relay and Adjustable output time 0.5~106 sec.
- Front panel IP54 weatherproof for outdoor use
Certification
Product
Dimension: Unit(mm)

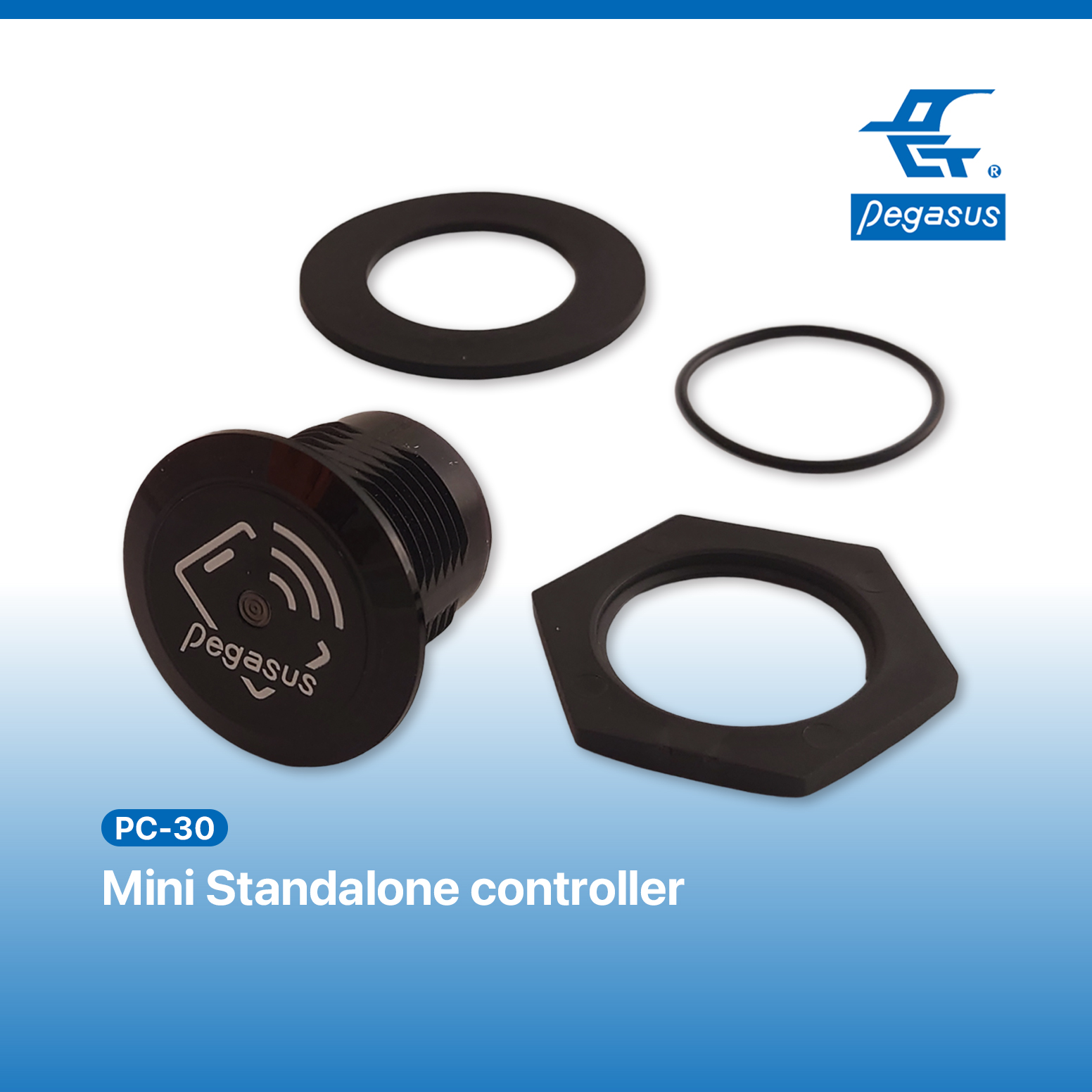

How to assembly
Example Applications
Ordering information
| PC-30/N | 125KHz ASK EM Standalone controller |
| PC-30/H | 125KHz FSK Standalone controller |
| PC-30/NH | 125KHz ASK EM & FSK Standalone controller |
| PC-30/F | 13.56MHz Multi Mifare & Felica, NFCS tandalone controller |
| PC-30/M0 | 13.56MHz Multi Mifare, NFC Standalone controller |
※Other customer request specifications are welcomed.
Mifare is a registered trademark of NXP B.V.
Mifare DESFire is a registered trademark of NXP B.V.
Mifare Ultralight is a registered trademark of NXP B.V.
FeliCa is a trademark of Sony Corporation.
Specification
Frequency
125KHz / 13.56MHz
Compatibility
125KHz ASK: ISO18000-2 EM4001, 4100, 4102, TEMIC 5567 / 125KHz: H.I.D. / 13.56MHz: ISO 14443 A MIFARE® Classic, Plus, Ultralight, ISO 18092 FeliCa, NFC (card simulation)
User Capacity
1000
Power Voltage
DC 12V
Input
Exit push button / Door monitor / Security sensor
Output
Alarm output / Tamper switch output / Electric lock output
Keypad
---
Material
PC
Dimensions (LxWxH)mm
39.7x39.7x30.2
IP Rating
IP54
Download
※ The specifications listed are subject to change by the company. If they differ from the actual product, the actual product shall prevail.
