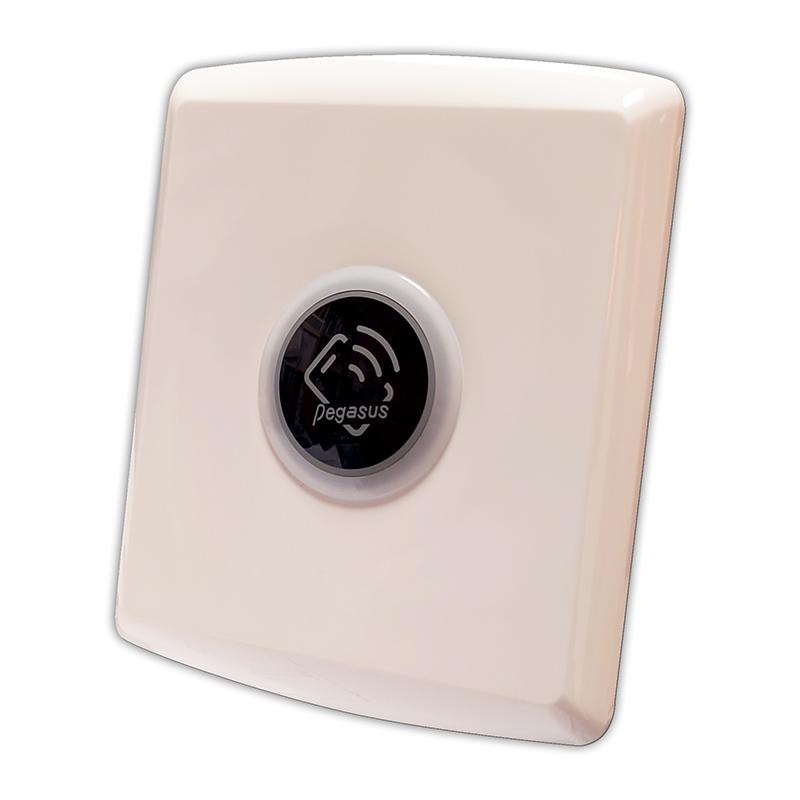

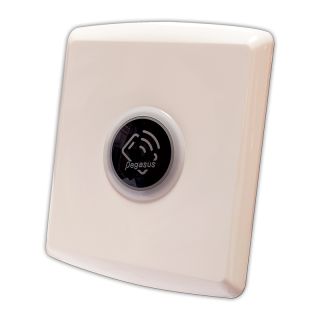

Model：PP-810

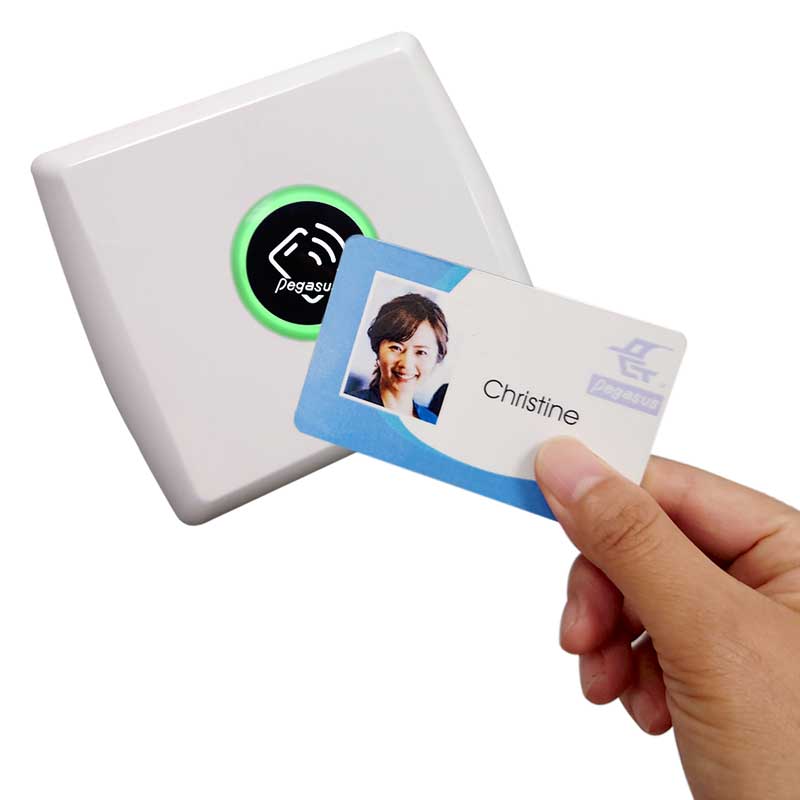

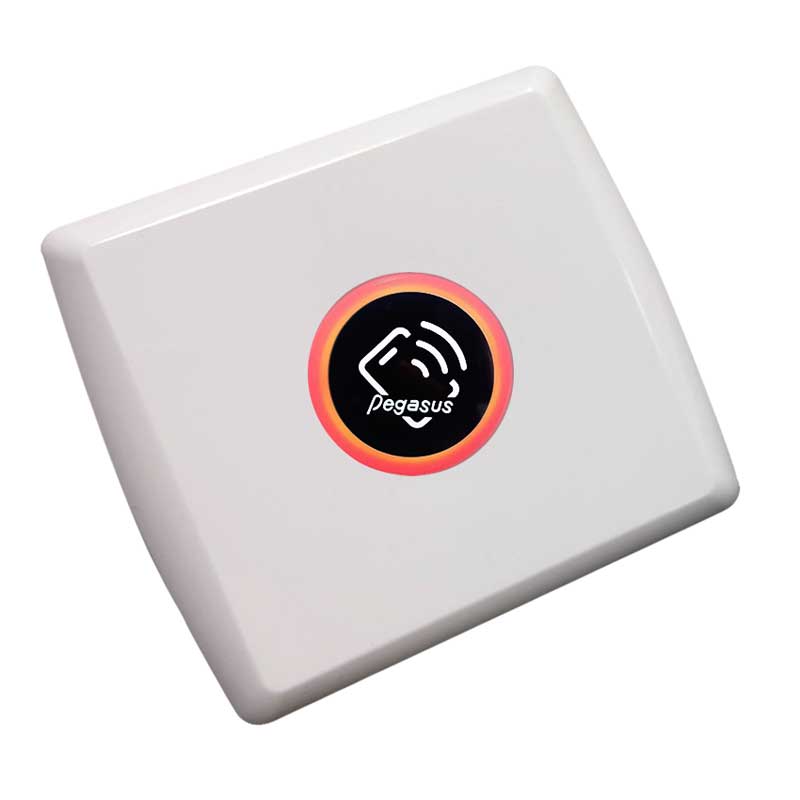

Flush-Mount RFID reader
- Easily interfaced with Pongee or other standard access controller for management of access control, time attendance & lift access control systems.
- With bi-color power and status LED indication.
- Built-in buzzer for sound notification.
- Supplies buzzer & LED responding signal.
- Provides tamper switch.
- Card reader with different card formats output thru DIP switch selection.
- Built-in CPU watch dog device to prevent the shot down.
- Ability to read multiple formats.
Product
Dimension: Unit:mm
Selectable format output thru Switch setting

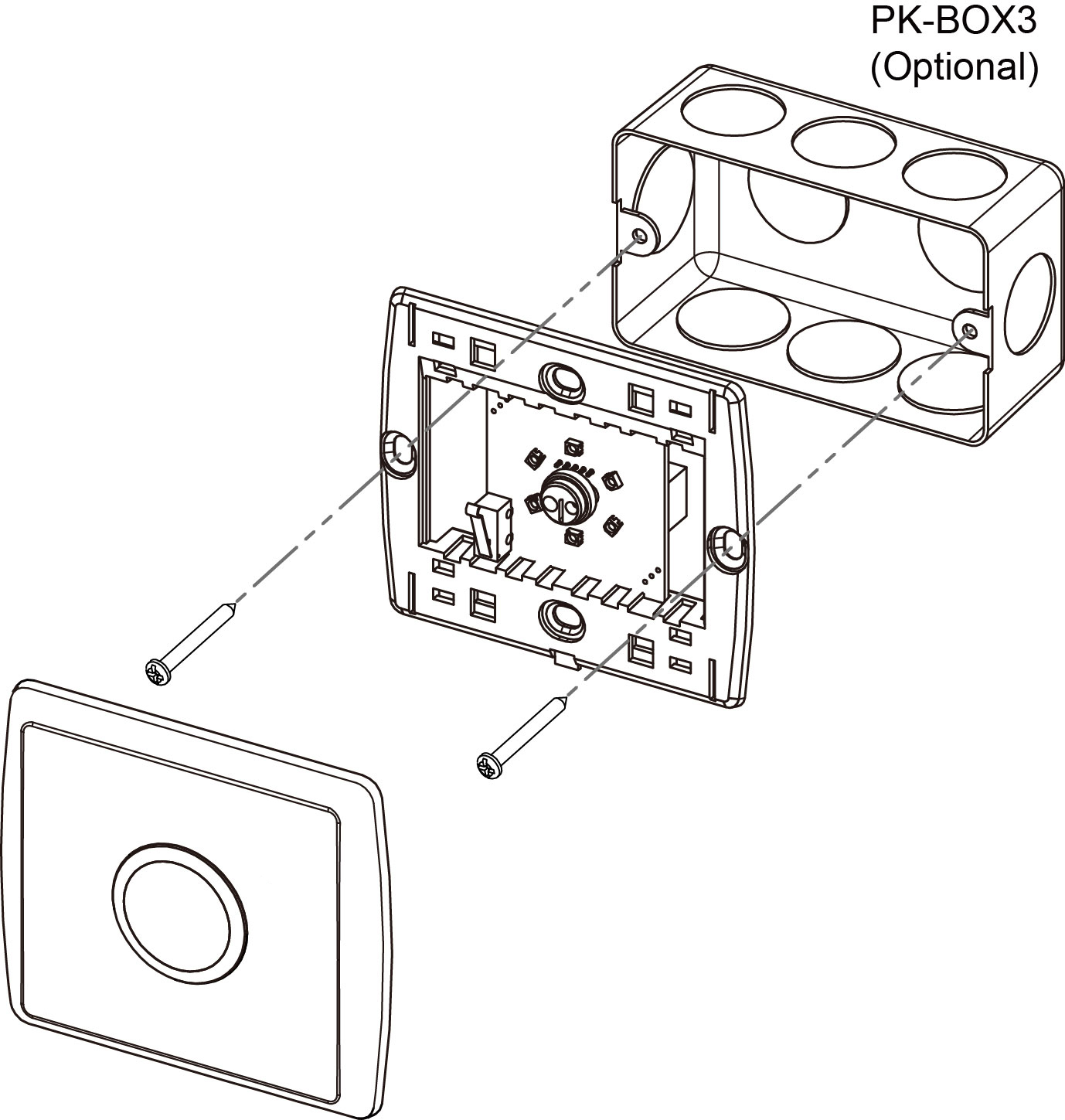

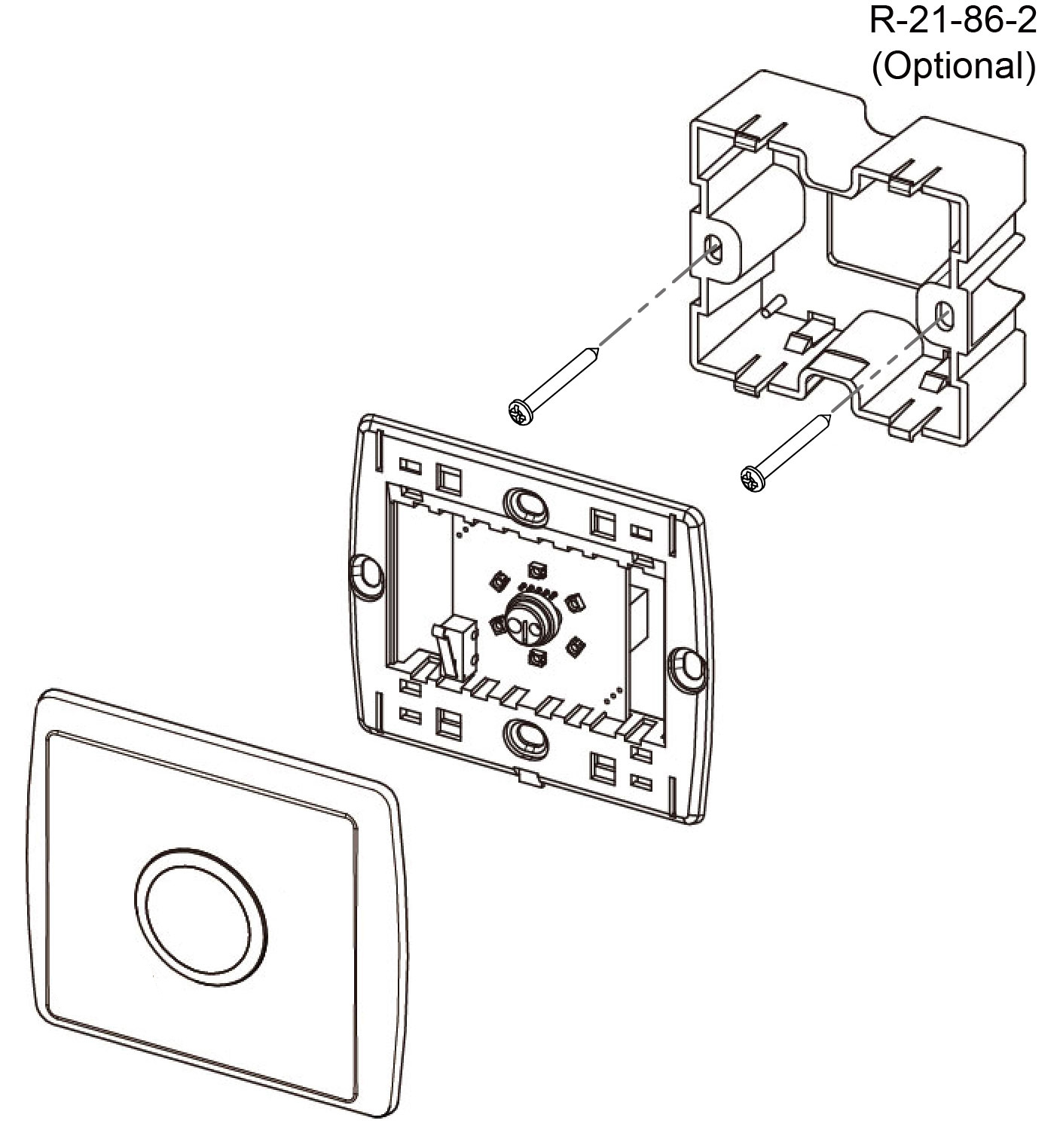

How to assembly
 |
 |
| Mounting box for EU standard | Mounting box for US standard |
Mifare is a registered trademark of NXP B.V.
MIFARE DESFire is a registered trademark of NXP B.V.
Specification
Frequency
13.56MHz
Compatibility
Mifare S50, Mifare Ultralight , Mifare DESFire, NFC Tag, COMBO Card
Power Voltage
DC7V-28V
Output Format/ Interface
Wiegand 26 & 34bits & TTL
IP Rating
---
Dimensions (LxWxH)mm
98x86x8
Download
※ The specifications listed are subject to change by the company. If they differ from the actual product, the actual product shall prevail.
